mgi sequencers
BRIEF OVERVIEW
MGI stands out as one of the few companies capable of independently developing and mass-producing clinical-grade gene sequencers with varying throughput capacities, ranging from Gb to Tb levels.
MGI PRODUCT MODEL
SPECIFICATIONS

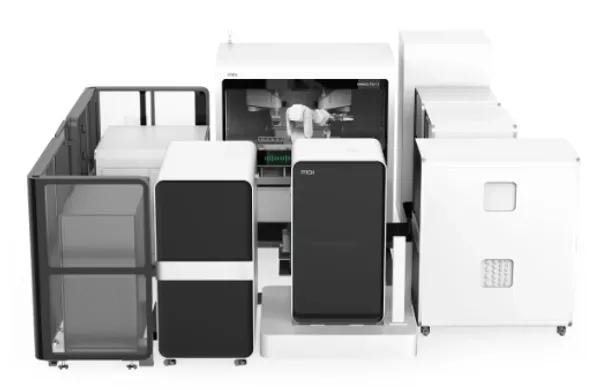

DNBSEQ-T20 X 2
SEQUENCING QUALITY- Q30>85% (PE150)
DIMENSIONS-4200 mm*4800 mm*2000 mm
APPLICATIONS- Ultra-high-depth Whole Genome Sequencing
MAX. FLOW CELL / RUN- 6
FLOW CELL TYPE- Slide
LANE/ FLOW CELL ++ (1 Lane)
OPERATION MODE- Ultra-high throughput
MAX. THROUGHPUT / RUN- ~72 Tb
EFFECTIVE READS / FLOW CELL- 40 B
AVERAGE RUN TIME- 60 hrs~80 hrs
MIN. READ LENGTH -PE100
MAX. READ LENGTH -PE150

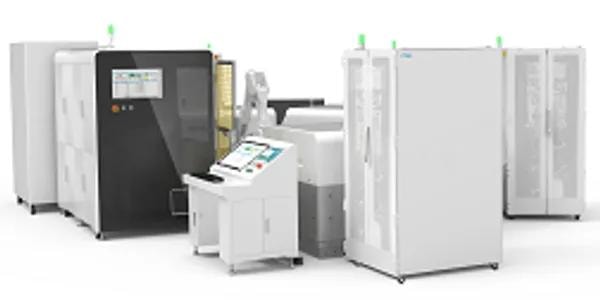

DNBSEQ-T10 X 4RS
SEQUENCING QUALITY-Q30>85% (PE150)
DIMENSIONS-7200 mm*5000 mm*1950 mm
APPLICATIONS-Ultra-high-depth Whole Genome Sequencing
MAX. FLOW CELL / RUN- 8
FLOW CELL TYPE- Slide
LANE/ FLOW CELL ++ (1 Lane)
OPERATION MODE- Ultra-high throughput
MAX. THROUGHPUT / RUN- 76.8 Tb
EFFECTIVE READS / FLOW CELL-32 B (PE150)
AVERAGE RUN TIME- 96 hrs~106 hrs
MIN. READ LENGTH -PE100
MAX. READ LENGTH -PE150

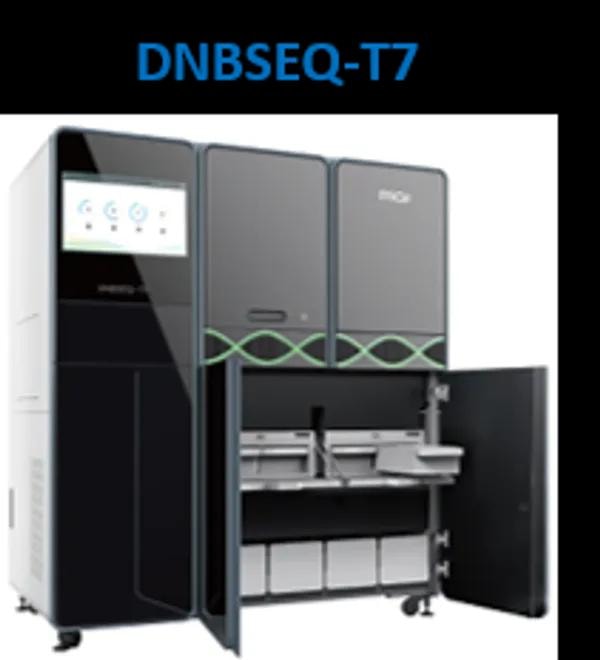

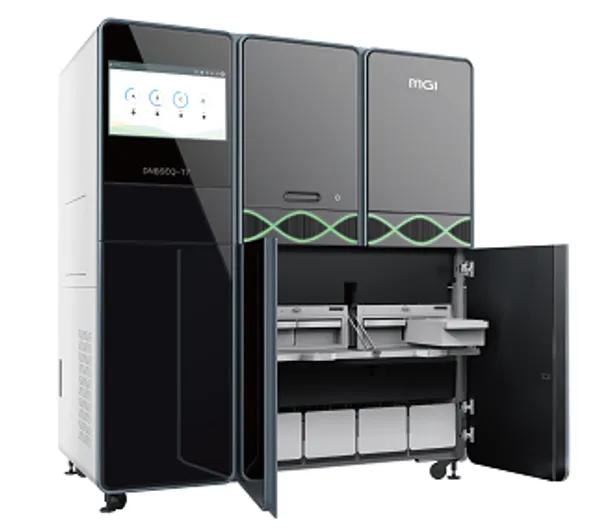

DNBSEQ-T7
SEQUENCING QUALITY-Q30>85% (PE150)
DIMENSIONS-1656 mm*903 mm*1815 mm
APPLICATIONS-Deep Whole Genome Sequencing
MAX. FLOW CELL / RUN- 4
FLOW CELL TYPE-FC
LANE/ FLOW CELL ++ (1 Lane)
OPERATION MODE- High throughput
MAX. THROUGHPUT / RUN- 7 Tb
EFFECTIVE READS / FLOW CELL-5800 M
AVERAGE RUN TIME-16 hrs~24 hrs
MIN. READ LENGTH -PE100
MAX. READ LENGTH -PE150

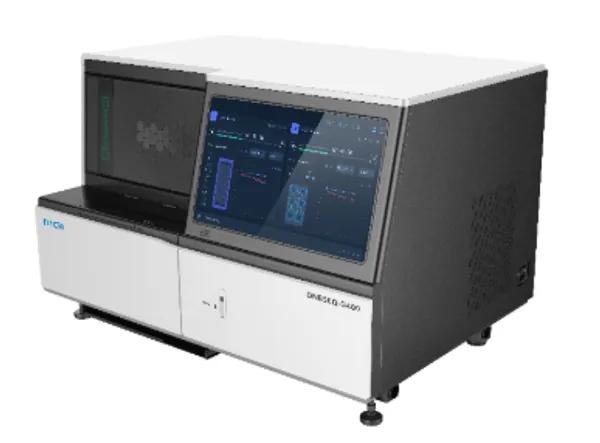

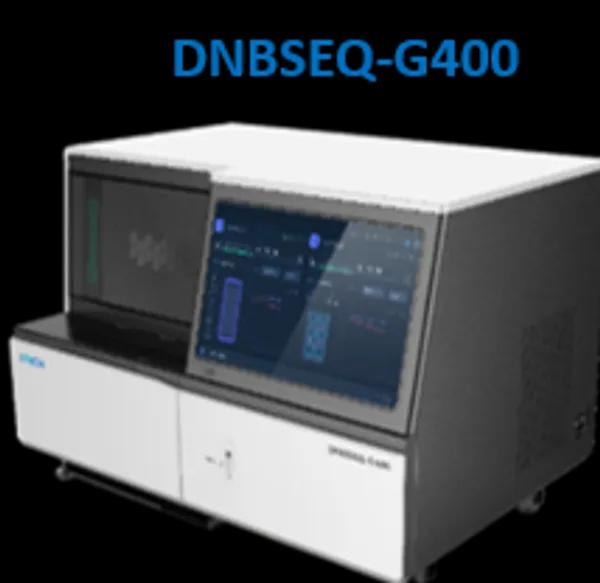

DNBSEQ-G400
SEQUENCING QUALITY- Q30>85% Q40>85% (PE150)
DIMENSIONS-1086 mm *756 mm *710 mm
APPLICATIONS- WGS, WES, Transcriptome sequencing, etc.
MAX. FLOW CELL / RUN- 2
FLOW CELL TYPE- FCS & FCL
LANE/ FLOW CELL ++ ( 2 Lanes & 4 Lanes)
OPERATION MODE- Medium & High throughput
MAX. THROUGHPUT / RUN- 1440 Gb
EFFECTIVE READS / FLOW CELL-300 M,550 M, 1500 M~1800 M
AVERAGE RUN TIME-FCS: 13 hrs~37 hrs FCL: 14 hrs~109 hrs
MIN. READ LENGTH - SE50
MAX. READ LENGTH - PE300

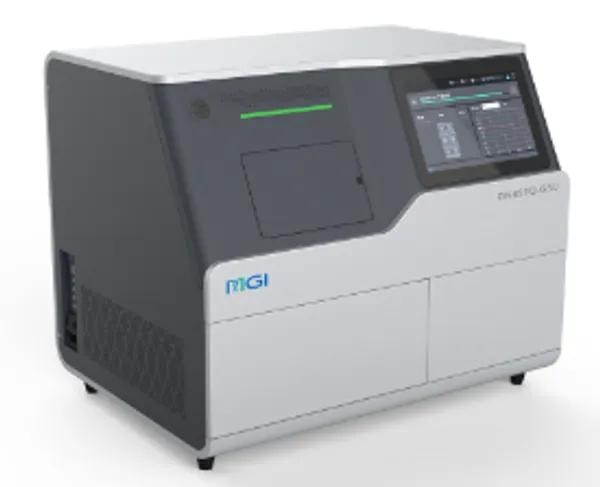

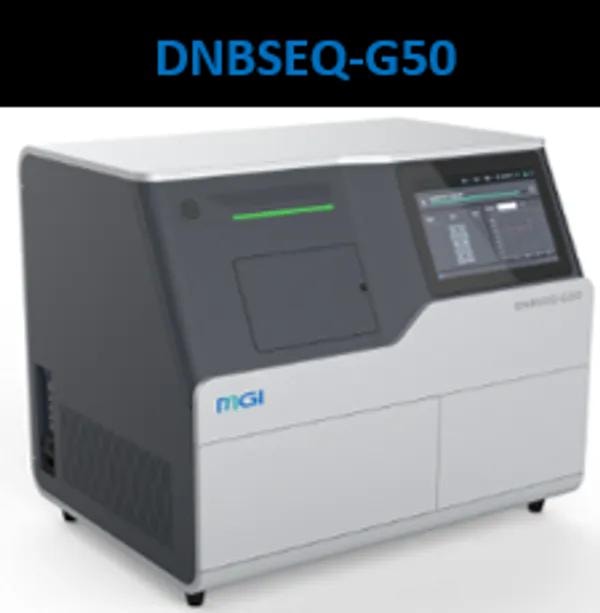

DNBSEQ-G50
SEQUENCING QUALITY- Q30>80% (PE150)
DIMENSIONS- 654 mm*489 mm*545 mm
APPLICATIONS-Small whole genome sequencing, targeted panels, low-pass whole genome sequencing
MAX. FLOW CELL / RUN- 1
FLOW CELL TYPE- FCS & FCL
LANE/ FLOW CELL ++ ( 1 Lane)
OPERATION MODE- Medium throughput
MAX. THROUGHPUT / RUN- 150 Gb
EFFECTIVE READS / FLOW CELL-100 M, 500 M
AVERAGE RUN TIME- 7 hrs~40 hrs
MIN. READ LENGTH - SE50
MAX. READ LENGTH - PE150

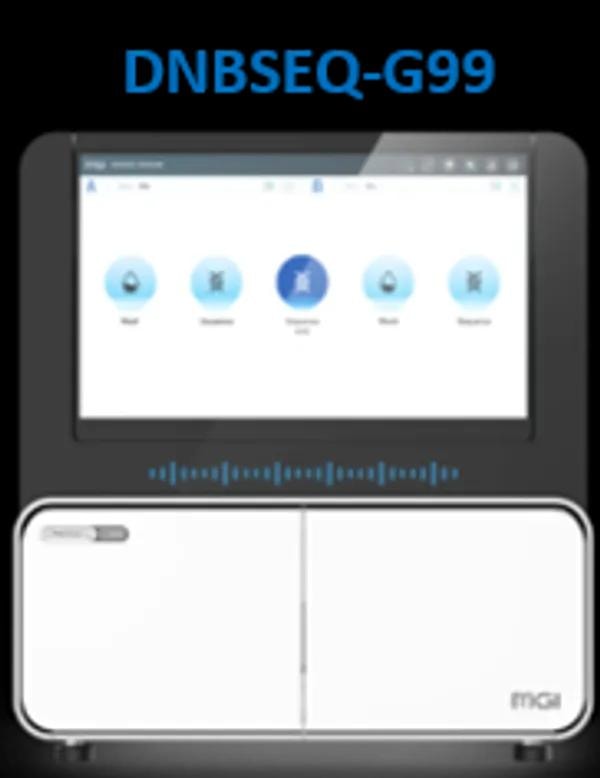

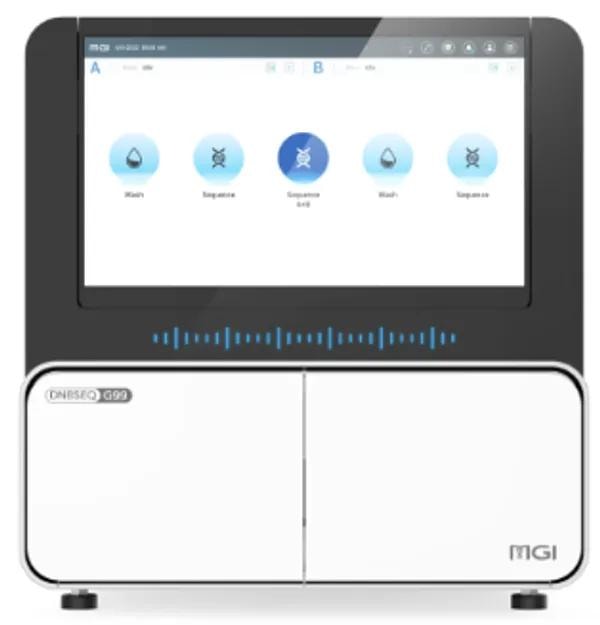

DNBSEQ-G99
SEQUENCING QUALITY- Q30>90% Q30>90% (PE150, SM 2.0)
DIMENSIONS-607 mm *680 mm *640 mm
APPLICATIONS- Targeted oncology panel sequencing, infectious disease sequencing, 16S Metagenomic sequencing
MAX. FLOW CELL / RUN- 2
FLOW CELL TYPE- FC
LANE/ FLOW CELL ++ (1 Lane)
OPERATION MODE- Low & Medium throughput
MAX. THROUGHPUT / RUN-96 Gb
EFFECTIVE READS / FLOW CELL-80 M
AVERAGE RUN TIME-5 hrs~30 hrs
MIN. READ LENGTH - SE100
MAX. READ LENGTH -PE300

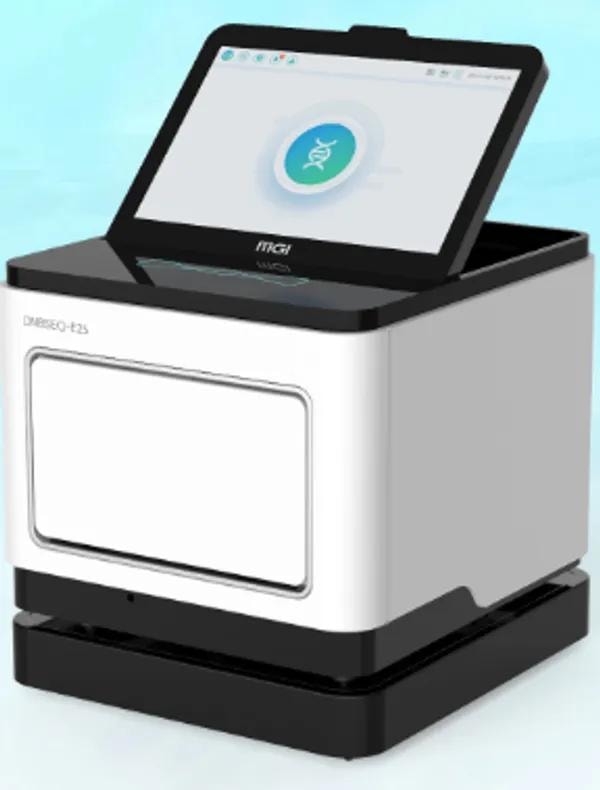

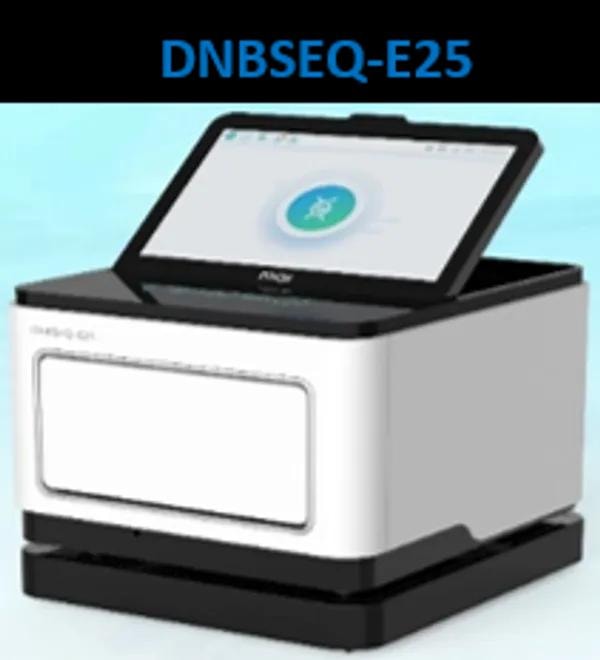

DNBSEQ-E25
SEQUENCING QUALITY- Q30>80% (PE150)
DIMENSIONS-348 mm *312 mm *257 mm
APPLICATIONS-Rapid identification of pathogenic microorganism,
Small whole genome sequencing, targeted panels
MAX. FLOW CELL / RUN- 1
FLOW CELL TYPE- FCL
LANE/ FLOW CELL ++ (1 Lane)
OPERATION MODE- Low throughput
MAX. THROUGHPUT / RUN- 7.5 Gb
EFFECTIVE READS / FLOW CELL-25 M
AVERAGE RUN TIME- 5 hrs~20 hrs
MIN. READ LENGTH - SE100
MAX. READ LENGTH - PE150
