BRIEF OVERVIEW

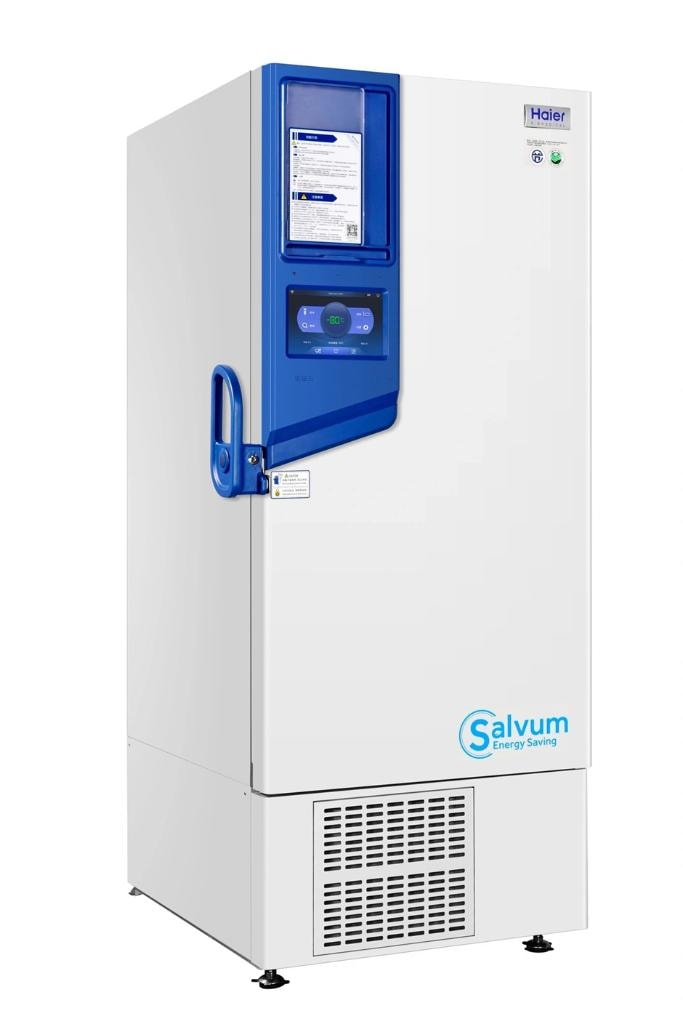

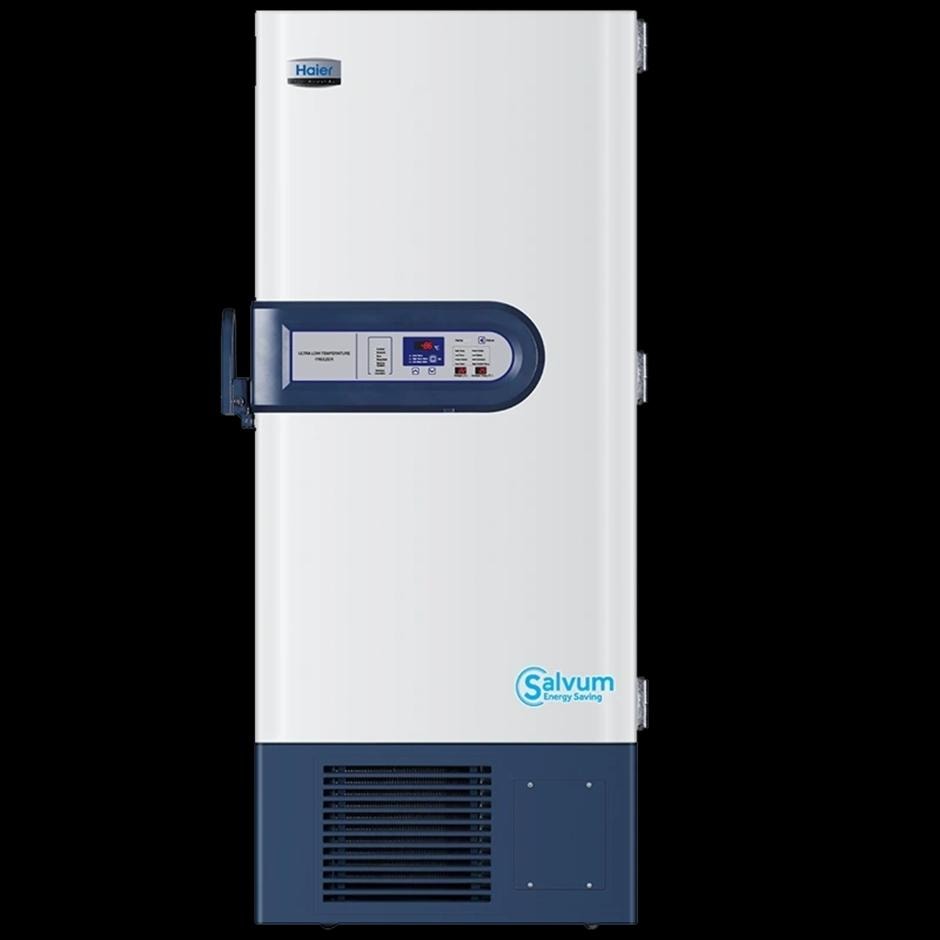

Low Energy ULT Freezer-LED Display

Specifications:

Model: DW-86L578J

Cabinet type:  Upright

Capacity (L/Cu.Ft) :  578/20.4

Power Supply (V/Hz) :   120/60,220～240/50

Display :  LED

Inner Doors : 4

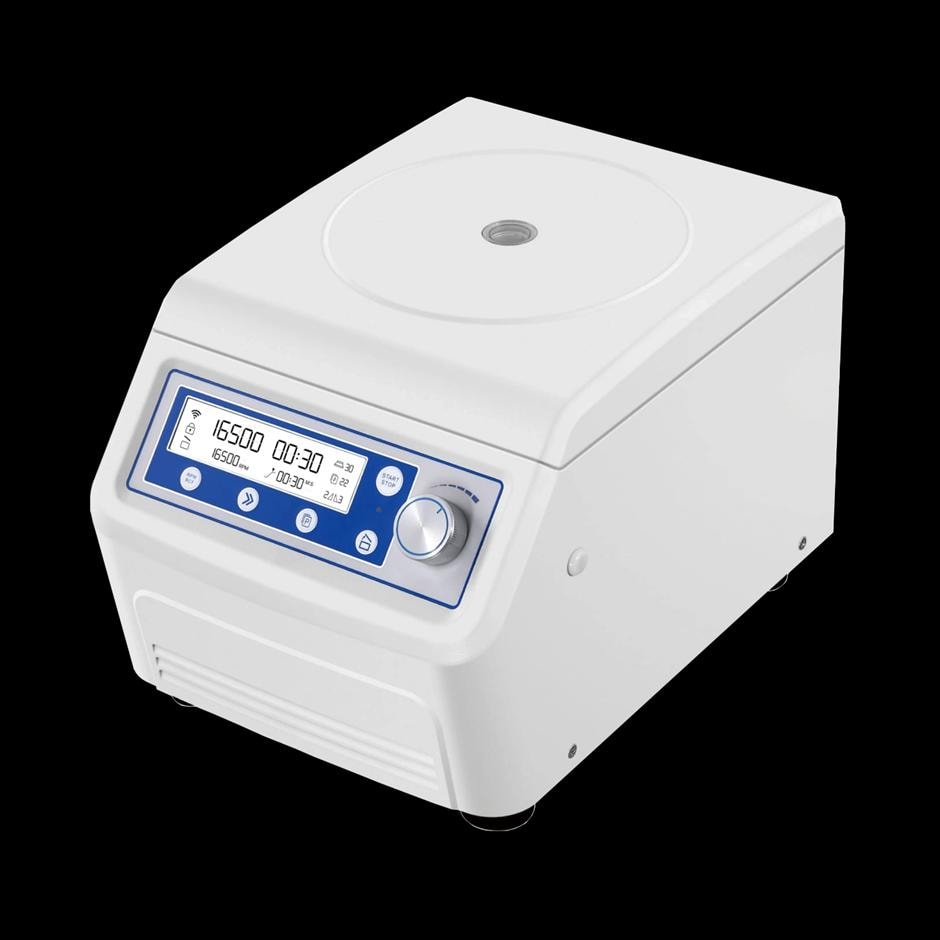

Mini-Centrifuge

Specifications:

Model : LX-120T2Z,  LX-80T2Z ,  LX-50T2Z

Max Capacity(ml) :  8×1.5/2.0,  8×1.5/2.0 , 8×1.5/2.0

Max speed (r/min) : 12000,8000,5000

Max RCF(xg) : 7325,3255,1270

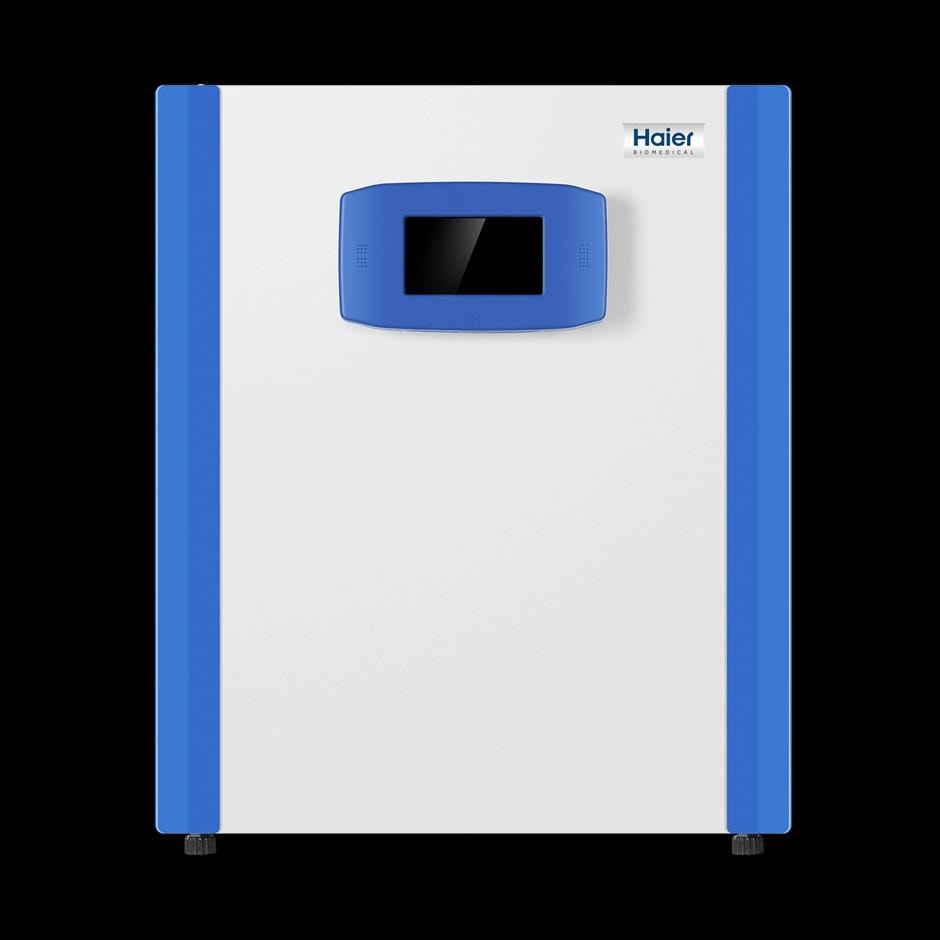

CO2 INCUBATOR

Specifications:

Model :  HCP-80,  HCP-168,  HCP-258

Power Supply (V/Hz) :  220-240/50/60

Humidity Reservoir :  Max.1.75L/Min 0.5L , Max.3.5L/Min 0.5L, Max.5.5L/Min 0.5L

Sterilization : 180℃ on all Internal Surfaces

Capacity: 80L, 170 L, 258 L

Shelves（Standard/Maximum) : 3/7, 3/11, 3/13


Biological Safety Cabinet (Touchscreen)

Specifications:

Model :  HR1200-IIA2-X

Power Supply (V/Hz) :  220/60;220/50

Power of Blower (W) :  DC 120 112

Downflow Velocity (m/s) : 0.3

Exhaust Filter Typical Efficiency : ULPA ,U15,99.99 9 5%@0.12um

Main Filter Typical Efficiency : ULPA ,U15,99.99 95%@0.12um
Airflow Circulation : 70% Downflow, 30% Exhaust

Size(Width) : 1336 mm

Blowers : Dual

Sash Opening : 1230 mm

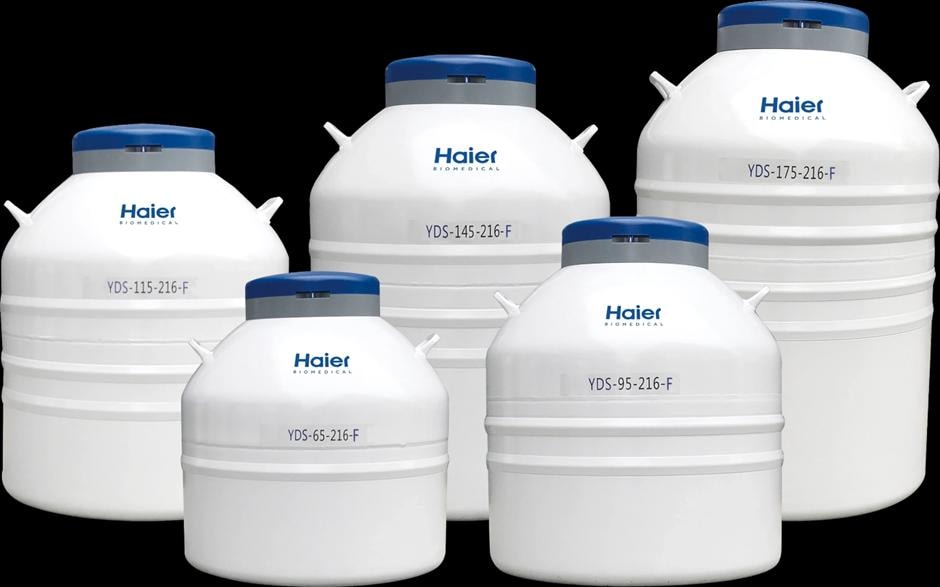

Liquid Nitrogen Container-Medium Sized Storage Series

Specifications:

Models : YDS-65-216-F,  YDS-95-216-F , YDS-115-216-F,  YDS-145-216-F,  YDS-175-216-F

Volume of LN2(L) : 65L, 95L,115L,145L,175L

2ml Volume : 2400,3000,3600,4800,6000

Inside Neck Diameter (mm) : 216 mm

Height (mm) :735,800,870,970,1085

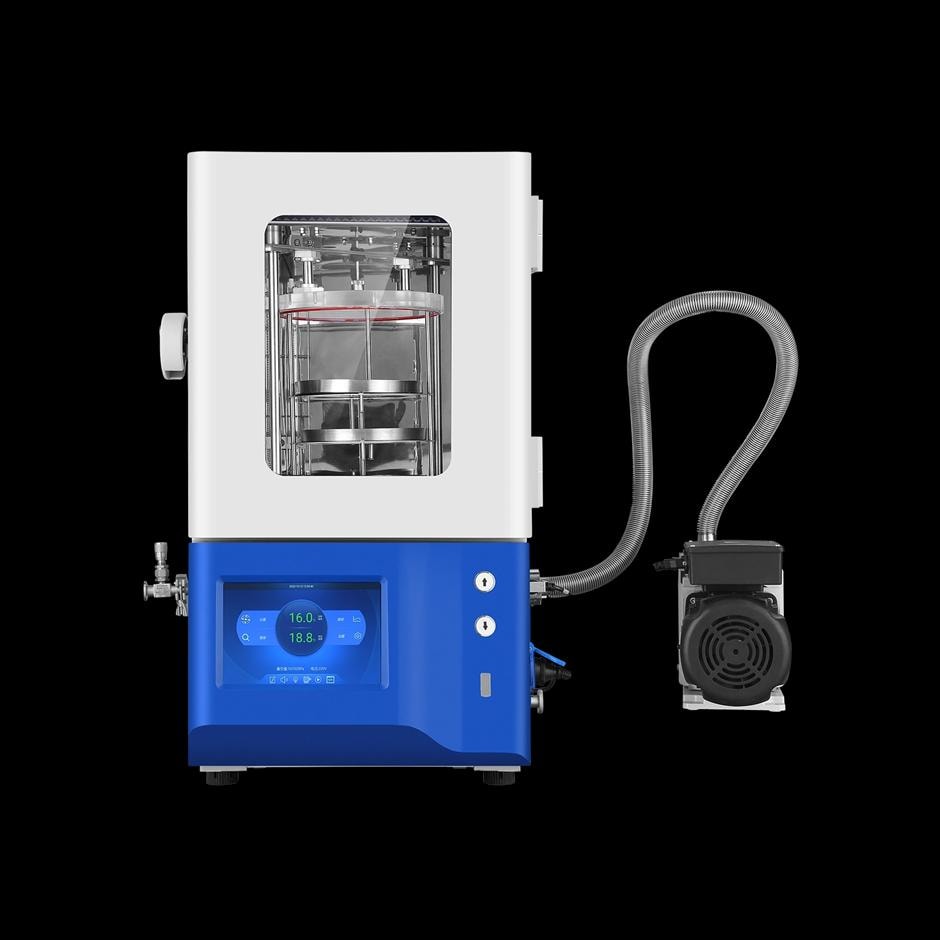

Freeze dryer

Specifications:

Models :  DG-65Z04-10A , DG-65Z04-10AR

Ice Condenser Temperature (°C) :  -65 ,  -65/-85 (Optional)

Condensation Efficiency :  4kg/24h,

Power Supply (V/Hz) :  220/50

Weight (kg) :  145 (Equipment)+25 (Pump) ,  65 (Equipment)+25 (Pump)

Exterior Dimension (W*D*H)(mm) :  480*793*883 (without pump),  480*793*730 (without pump)
